The objective of this tutorial is to run a Hello World program on QEMU. The prerequisite is to have a cross-compiler for OpenRISC 1000 (or1k). And don’t forget to add it to the PATH
.
Intro
QEMU is a generic emulator that supports various target architectures. It can be used to emulate a 32-bit OpenRISC CPU.
QEMU has two different modes of emulation: user mode and system emulation mode. The user mode only allows you to run programs compiled for the target architecture, while the system mode emulates the complete hardware.
User Mode
Install QEMU
Install the pre-built package from your distribution’s package manager. On Ubuntu, run
sudo apt install qemu-user-static
for running statically linked binaries OR
sudo apt install qemu-user
for running dynamically linked binaries. Personally, I am using the static version for this tutorial. The way this mode of emulation works is that QEMU captures the target’s (or1k in this case) system calls and translates them into your host system’s.
Cross-compile the Program
hello.c
is included in this directory. Compile it using the cross-compiler you have. For me, the command is
or1k-none-linux-musl-gcc hello.c -static -o hello
.

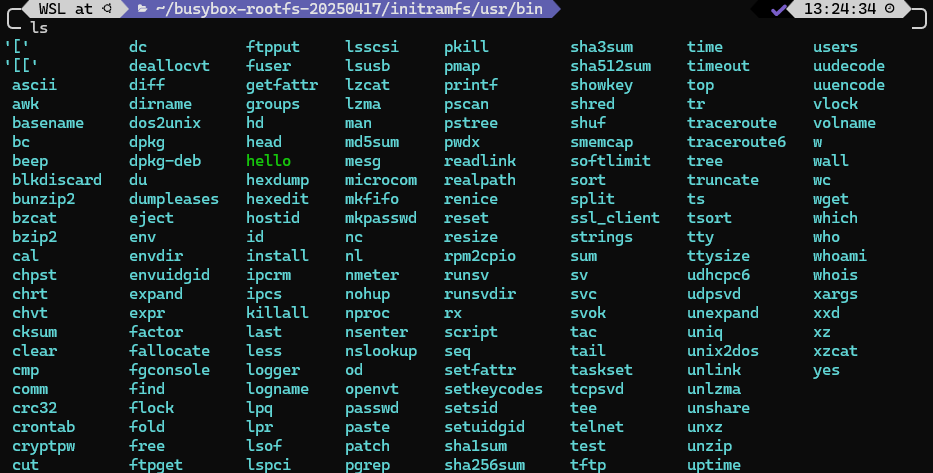

And check if the output file type looks correct using file
command.
file hello
hello: ELF 32-bit MSB executable, OpenRISC, version 1 (SYSV), statically linked, with debug_info, not stripped
Note that -static
flag was used when compiling. Without this, the output will be a dynamically linked ELF, which will give an error, qemu-or1k-static: Could not open '/lib/ld-musl-or1k.so.1': No such file or directory
, if we try to run it using qemu-or1k-static
.

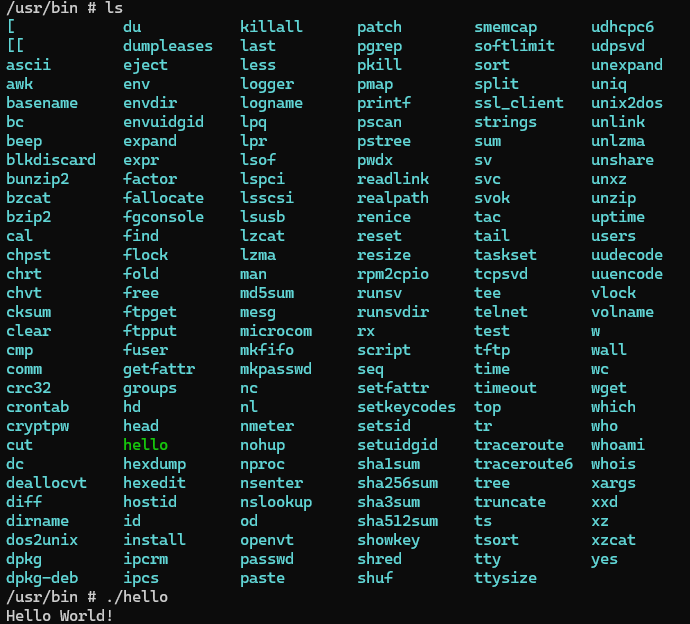

Run the Program
qemu-or1k-static hello
If the output is Hello World!
, then everything is working correctly.
System Emulation
The following exercise will make a very simple bare-metal or1k system with our hello.c program as the “kernel”.
Install QEMU (From Source)
Running QEMU full-system emulation means you need to run a different QEMU binary than what you used for the user mode. On Ubuntu, you can run
sudo apt install qemu-system
. However, this will download a quite old version of QEMU (likely version 8.2.2) and this does not work with this tutorial. This tutorial was tested to be working on QEMU version 9.2.2.
Because of this, we show how to build QEMU below:
- Grab a tar ball from https://download.qemu.org/ for the version you like (preferably 9.2.2 or higher)
curl -O -L https://download.qemu.org/qemu-9.2.2.tar.xz
- Untar it
tar -xf qemu-9.2.2.tar.xz
- Go inside the root directory and run configure
cd qemu-9.2.2 && ./configure --target-list="or1k-linux-user or1k-softmmu"
Note that during this step, you may encounter a lot of issues with dependencies required for QEMU.
- Finally, run
make
. The generated binaries should be found inside/build
.
Cross-compile the Program
Since we want to run hello.c
bare-metal (no OS like linux to handle the execution), we need to use the newlib toolchain. Download the toolchain and untar it like we did for QEMU.
curl -O -L https://github.com/stffrdhrn/or1k-toolchain-build/releases/download/or1k-15.1.0-20250621/or1k-elf-15.1.0-20250621.tar.xz
tar -xf or1k-elf-15.1.0-20250621
export PATH=$PATH:<path of or1k-elf bin folder>
One important thing to note is that compiling a C program using a bare-metal cross-toolchain like
or1k-elf-
results in a binary code that directly runs on the hardware. For example,printf()
in source code gets translated into writing bytes to the UART byor1k-elf-
. In contrast,or1k-none-linux-musl-
will translate it into awrite
system call, which in turns gets further handled by the linux OS.
Then we compile the code, but for a specific board. This is done by passing -mboard
option. There are two boards that can work: or1ksim-uart
or ordb1a3pe1500
. The full list can be found here.
or1k-elf-gcc -mboard=ordb1a3pe1500 hello.c -o hello.qemu
// OR
or1k-elf-gcc -mboard=or1ksim-uart hello.c -o hello.qemu

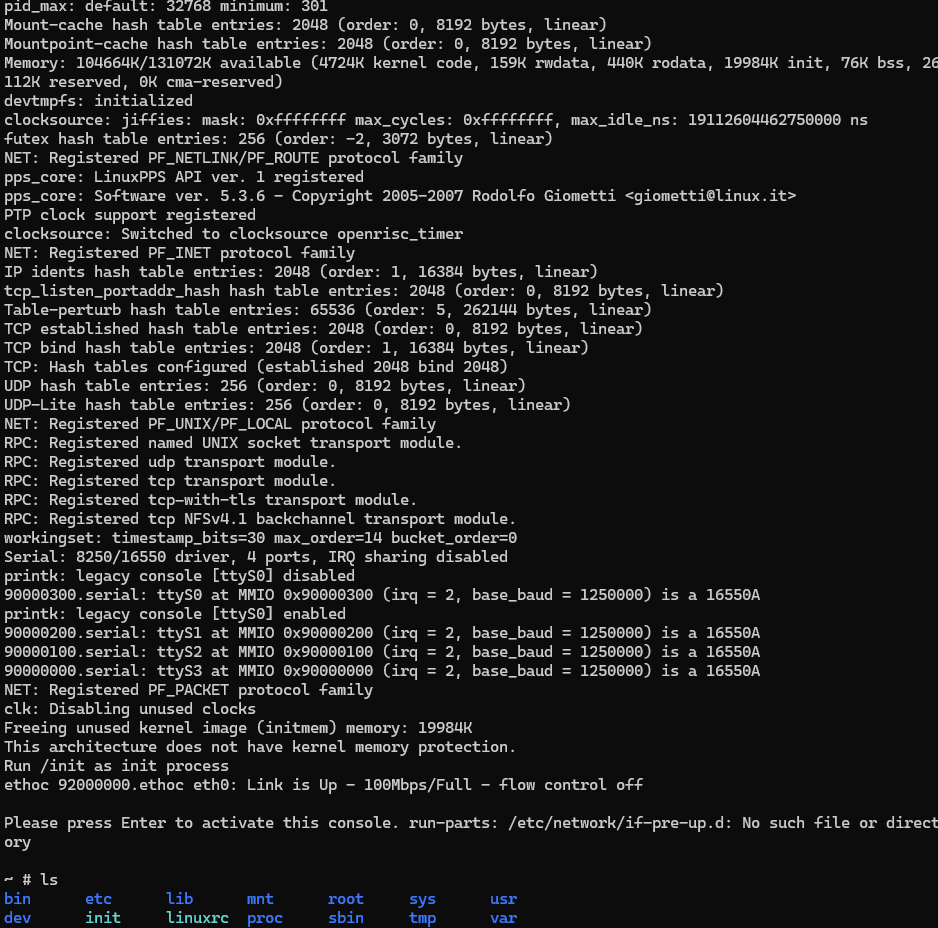

Run the Program
./qemu-9.2.2/build/qemu-system-or1k -cpu or1200 -serial mon:stdio -kernel hello.qemu -nographic
The expected result of the run should be Hello World!
being printed out and then hanging.
If you compiled the program without passing
-mboard=
flag or with something other than 2 boards mentioned above, you may not see any output. QEMU by default uses or1ksim board when the board is not specified using-M
flag like we did above. And it uses specific memory layout and configuration that can be found here. In order for serial output to be captured and displayed properly by the QEMU or1ksim, its UART configuration (memory-mapped address, baud rate and IRQ) should match that of the binary.or1ksim-uart
andordb1a3pe1500
happen to have the matching configuration and allow the compiler to generate binaries that can work well with QEMU (if I have to pick the best one for this, I would pickordb1a3pe1500
, because it has 20MHz clock frequency just like QEMU or1ksim as opposed to 100MHz).
