Prerequisites

System

  • An x86 Linux workstation
  • The curl command line utilities
  • OpenOCD 0.10.0 (As of 2025, versions 0.11.0 and 0.12.0 have jtag timing issues)
  • The quartus FPGA design software
  • fusesoc - The FuseSoC build system.
  • or1k-elf- Toolchain as installed in our newlib tutorial.

Files

  • hello.c - A Hello World test program.
  • timer.c - A baremetal example using the OpenRISC timer api’s provided by newlib.

DE0 Nano

To confirm you have all of the required tools installed check with the following:

To run the demo you need:

  • quartus_pgm in your PATH, check with

      which quartus_pgm

  • openocd in your PATH and OPENOCD set, check with

      openocd --version
  echo $OPENOCD

  • or1k-elf-gdb in your PATH, check with

      or1k-elf-gdb --version

Setup the board

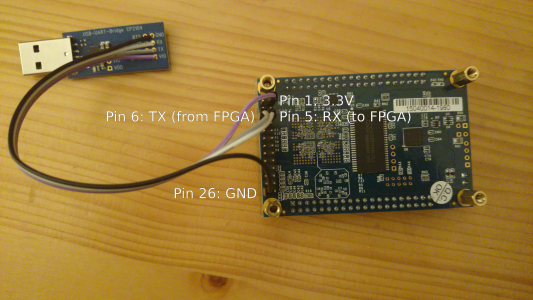

First you need to setup the board, by connecting the USB cable to your computer. If you want to use UART, an extra dongle is needed. Any USB-UART adapter can be used. You need to connect it to the header on the bottom of the board as depicted below.

uart

Setup the Environment

To get started we will want to have a directory with all of our build files in one place.

mkdir /tmp/or1k-de0nano
cd /tmp/or1k-de0nano

curl -L -O https://openrisc.io/tutorials/sw/hello/hello.c
curl -L -O https://openrisc.io/tutorials/sw/timer/timer.c
curl -L -O https://openrisc.io/tutorials/de0_nano/de0_nano.cfg

CFLAGS="-mboard=de0_nano -DDE0_NANO"
or1k-elf-gcc -g -Og $CFLAGS -o hello.elf hello.c
or1k-elf-gcc -g -Og $CFLAGS -o timer.elf timer.c

# Add IP cores to the environment
fusesoc library add fusesoc-cores https://github.com/fusesoc/fusesoc-cores
fusesoc library add elf-loader https://github.com/fusesoc/elf-loader.git
fusesoc library add openrisc-cores https://github.com/openrisc/openrisc-cores
fusesoc library add de0_nano https://github.com/olofk/de0_nano.git

# Check the SoC is available
fusesoc core show de0_nano

Build the FPGA bitstream

fusesoc run de0_nano

The FuseSoC run command will run the default target, for de0_nano this is synthesis using the tool quartus. You could also specify this using fusesoc run --target synth --tool quartus de0_nano. The run command has 3 phases:

  • setup - Creates the project directories and project files
  • build - Builds the artifacts, for quartus this means the FPGA bitstream.
  • run - Runs the SoC, this will perform programming, but by default this is disabled.

Program the FPGA bitstream

Once the board is setup and built, you can download the FPGA bitstream by running the following:

fusesoc run --run de0_nano --pgm quartus

Passing the --run argument allows only the run stage to be run. This is useful as we do not want to build the entire project again. Passing --pgm quartus enables the run stage to use quartus_pgm to program the bitstream to fpga board.

Start the OpenOCD daemon

In one terminal execute the following command:

openocd -f interface/altera-usb-blaster.cfg -f de0_nano.cfg

Run software with gdb

From a second terminal you can now run gdb, for example to run the timer example:

or1k-elf-gdb timer.elf

In gdb execute the following steps:

target remote :50001
load
set $npc=0x100
continue

This will:

  • Connect GDB to the GDB server hosted in the openocd process.
  • The load command will load the timer.elf binary onto the de0 nano board.
  • The set $npc=0x100 command will set the mor1kx CPU program counter to 0x100 the default reset verctor.
  • Finally continue will resume the program. In this case it will resume from reset starting the program.

You should see the LEDs counting and UART output once a second.
